Hikvision OEM 4K 8CH 8POE CCTV Kit 8MP Colorvu + IR IP Camera Smart Hybrid Light
Thumbnail 1 Thumbnail 2 Thumbnail 3 Thumbnail 4 Thumbnail 5 Thumbnail 6 Thumbnail 7 Thumbnail 8 Thumbnail 9 Thumbnail 10 Thumbnail 11 Thumbnail 12 Thumbnail 13 Thumbnail 14 Thumbnail 15 Thumbnail 16 Thumbnail 17 Thumbnail 18 Thumbnail 19 Thumbnail 20 Thumbnail 21 Thumbnail 22 Thumbnail 23 Thumbnail 24

Hikvision OEM 4K 8CH 8POE CCTV Kit 8MP Colorvu + IR IP Camera Smart Hybrid Light

GBP 305.00
Condition: New
Category: Electronics
View on eBay Back to Home
Fast Shipping
Estimated delivery in 3-5 days
Easy Returns
30-day returns, buyer pays return shipping
Hikvision OEM 4K 8CH 8POE CCTV Kit 8MP Colorvu + IR IP Camera Smart Hybrid Light
>APP : hik-connect, guard viewer, IVS-4200
>Search Tool：SADP （search device and change IP address）
>Warranty: 3years
>If there is any problem with use, please contact with us at any time. we have very professinal engineer, can help you set online.
>>> The camera is Hikvision Compatible  (brand: Panoeagle) , support Hikvision Protocol. can plug and play with Hikvision NVR
>>> All the items are with 3 years warranty, if there is any problem after purchased, please contact us for help.

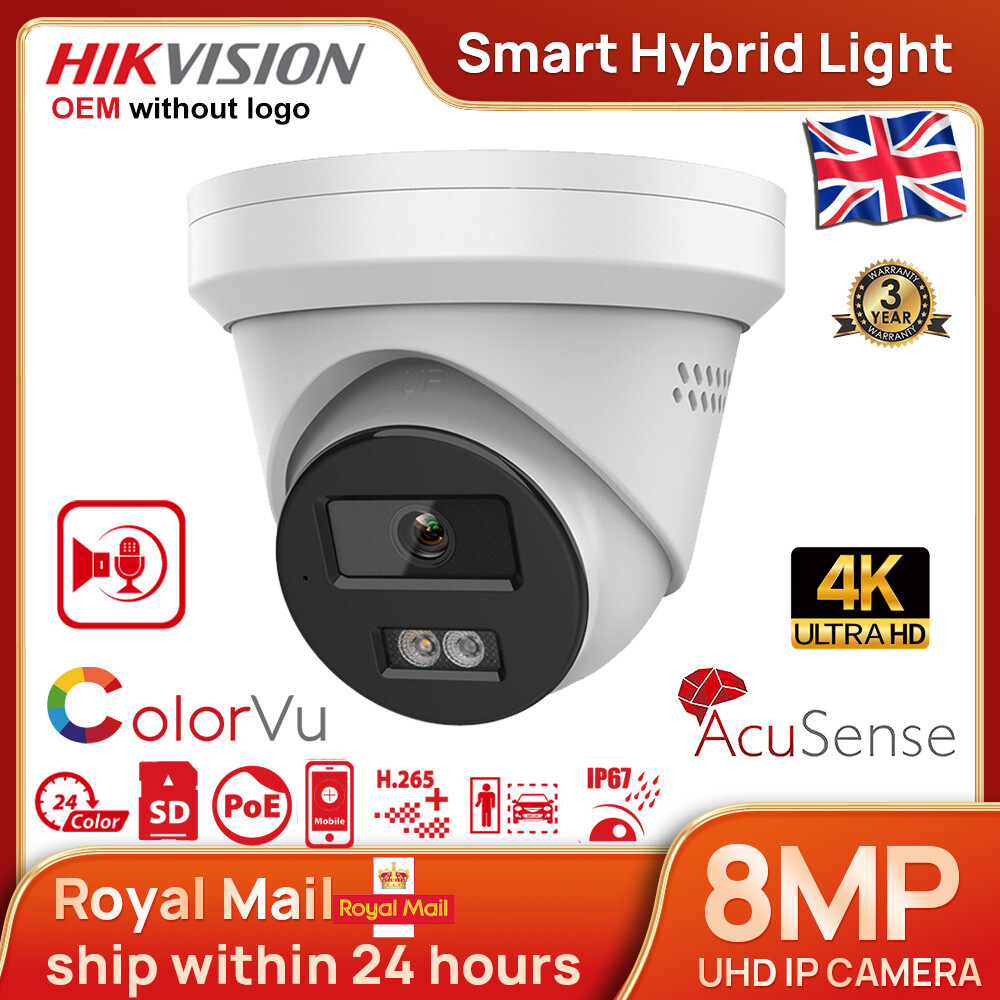

Vikylin 8 MP Smart Hybrid Light Fixed Turret Network Camera VK383-LIUF-SL

  • High quality imaging with 8MP resolution
  • Support Human and Vehicle Detection
  • Smart Hybrid Light: advanced technology with long range
  • Efficient H.265+ compression technology
  • Support on-board storage up to 512 GB (SD card slot)
  • Provide real-time security via built-in two-way audio
  • Water and dust resistant (IP67)

HIKVISION OEM 4K 8CH 8 POE NVR DS-7608NI-Q1/8P

> Up to 8 channel IP cameras can be connected
> Supports decoding H.265+/H.265/H.264+/H.264 video formats
> Up to 1-ch /8MP or 5-ch /1080P decoding capacity
> Up to 40/80 Mbps high incoming bandwidth ensures IP cameras can be connected
> 1 HDD for continuous video recording
> Plug & Play with 4/8 Power-over-Ethernet (PoE) interfaces.
> Metal case for professional industry applications

VK383F-LIUF/SL

Camera
Image Sensor1/2.4" Progressive Scan CMOS
Max. Resolution3840 × 2160
Min. IlluminationColor: 0.005 Lux - (F1.6, AGC ON),B/W: 0 Lux with IR
Shutter Time1/3 s to 1/100,000 s
Day & NightIR cut filter
Angle AdjustmentPan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360°



Lens
Lens TypeFixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV

2.8 mm, horizontal FOV 105°, vertical FOV 55°, diagonal FOV 127°

4 mm, horizontal FOV 78°, vertical FOV 38°, diagonal FOV 96°

Lens MountM12
Iris TypeFixed
ApertureF1.6



DORI
DORI

2.8 mm, D: 76 m, O: 30 m, R: 15 m, I: 7 m

4 mm, D: 115 m, O: 45 m, R: 23 m, I: 11 m



Illuminator
Supplement Light TypeIR,White Light
Supplement Light RangeUp to 30 m
Smart Supplement LightYes
IR Wavelength850 nm



Video
Main Stream

50 Hz:

20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

60 Hz:

20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

Sub-Stream

50 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)

60 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)

Video Compression

Main stream: H.265+/H.265/H.264+/H.264,

Sub-stream: H.265/H.264/MJPEG

Video Bit Rate32 Kbps to 16 Mbps
H.264 TypeBaseline Profile,Main Profile,High Profile
H.265 TypeMain Profile
Bit Rate ControlCBR,VBR
Region Of Interest (ROI)1 fixed region for main stream
Scalable Video Coding (SVC)H.264 and H.265 encoding



Audio
Audio TypeMono sound
Audio Sampling Rate8 kHz/16 kHz
Environment Noise FilteringYes
Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM/AAC-LC
Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)



Network
SecurityPassword protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
Simultaneous Live ViewUp to 6 channels
APIOpen Network Video Interface (Profile S, Profile T, Profile G),ISAPI,SDK
ProtocolsTCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP, UPnP
User/Host

Up to 32 users

3 user levels: administrator, operator, and user

ClientiVMS-4200,Hik-Connect
Web Browser

Plug-in required live view: IE 10, IE 11,

Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+



Wide Dynamic Range (WDR)120 dB
SNR≥ 52 dB
Day/Night SwitchDay,Night,Auto,Schedule
Image EnhancementBLC,HLC,3D DNR
Image SettingsRotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
Privacy Mask4 programmable polygon privacy masks



Interface
Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage



Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB

Built-In MicrophoneYes,1 built-in microphone
Built-In SpeakerMax. power consumption: 1.5 W, max. sound pressure level: 10 cm: 95 dB.
Reset KeyYes
Event
Basic EventMotion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
LinkageUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,trigger capture,audible warning,flashing light



General
Power

12 VDC ± 25%, 0.66 A, max. 8 W,Ø5.5 mm coaxial power plug,reverse polarity protection,

PoE: IEEE 802.3af, Class 3, max. 9.5 W

MaterialMetal & Plastic
DimensionØ110 mm × 102.7 mm (Ø4.33" × 4.04")
Package Dimension150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")
WeightApprox. 340 g (0.7 lb.)
With Package WeightApprox. 560 g (1.2 lb.)
Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup And Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
LanguageEnglish, Ukrainian
General FunctionHeartbeat,anti-banding,mirror,password protection,password reset via email
Flashing LightYes



Approval
EMC



CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,

RCM: AS/NZS CISPR 32: 2015,

IC: ICES-003: Issue 7

Safety

UL: UL 62368-1,

CB: IEC 62368-1: 2014+A11,

CE-LVD: EN 62368-1: 2014/A11: 2017,

BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005

Environment

CE-RoHS: 2011/65/EU,

WEEE: 2012/19/EU,

Reach: Regulation (EC) No 1907/2006

ProtectionIP67: IEC 60529-2013

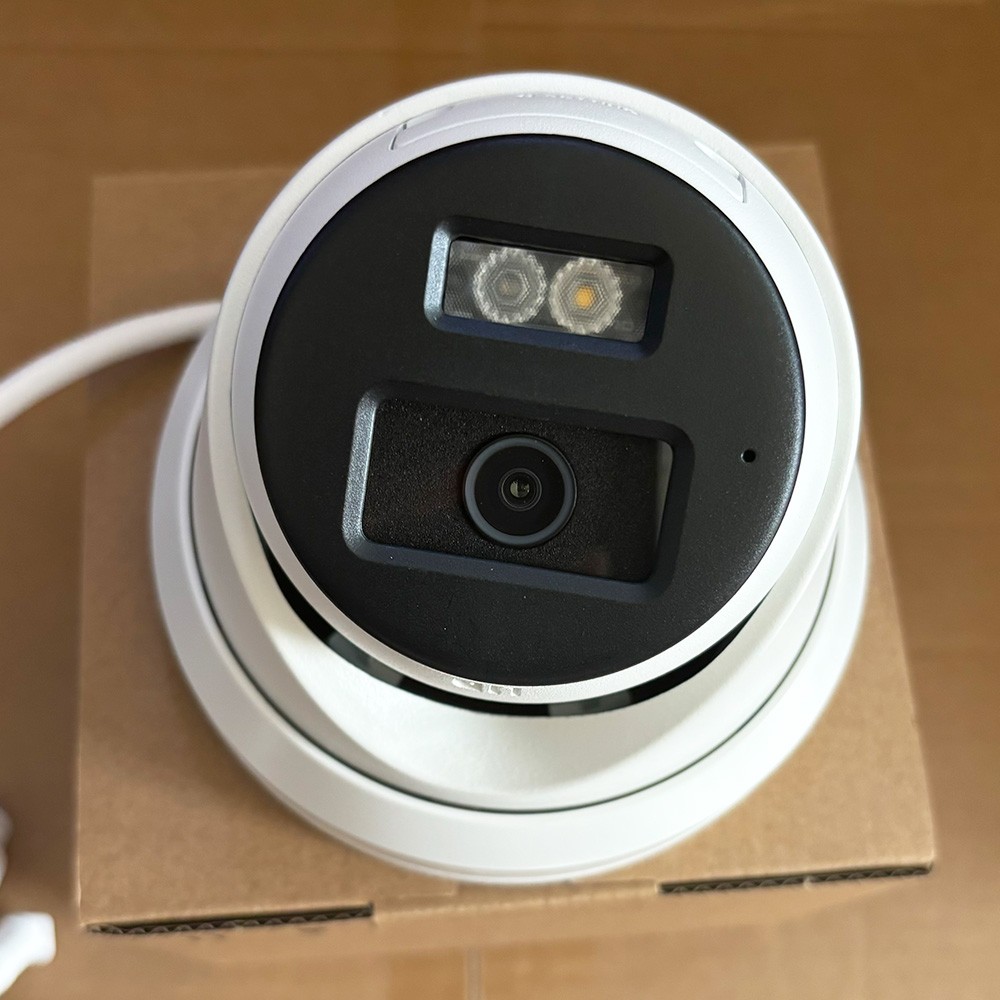

3 Modes Can Be Switched

This POE IP camera has 2PCS IR LED + 2PCS Warm Light LED, three modes can be switched ((IR mode only) (color mode only)
(IR+color mode) can be set freely, Color mode：Warm Light LED will always be on, Infrared + color mode: When a human body is detected,
the Warm Light LED will automatically turn on and switch to color mode,Very suitable for use in the front door, yard, garage

2-Way Talk (Works with Hikvision Series NVR)

This 8MP IP PoE security camera builds in a noise cancellation speaker & Microphone, letting you can talk with the visitors or your family wherever you are.
Which means that you can also warn the unfriendly visitors via the speaker. ( Note： The MIC+Speaker function all work with hikvision NVR )
Ultra 8MP High HD Resolution
Observe high-quality footage with a 1/2.7" Progressive Scan CMOS
Ultra HD 8MP- Resolution (3840 × 2160) Provide a more HD and smoother visual experience.

Focus on human and vehicle targets classification based on

Empowered by deep learning algorithms,
Hikvision AcuSense technology brings human or vehicle target classification alarms to front- and back-end devices.
The system can greatly reduce false alarms generated by targets other than humans or vehicles,
vastly improving alarm efficiency and effectiveness

Support on-board storage up to 512 GB (SD card slot)

Ultra HD Resolution，Smart265+

Smart H.265 technology reduces bit rate and storage requirements by up to 70% when compared to standard H.265 video compression

 Motion detection&P2P

The camera support the motion detection，recording by the alarm detection，
Camera can easy to add the camera to mobile phone via APP，Preview in real time no matter where you are

Easy to use

The camera is Hikvsion original version, 100% English version, compatible with Hikvision and other brand protocol，
the camera can Plug and play with Hikvison NVR, Power Over Ethernet (POE) for easy installation

IP67 Weatherproof

Equipped with an ip67 rated weatherproof outer casing, designed to operate the camera even in extreme weather conditions.

Support On-vif

The camera is Hikvision OEM version camera,  can plug and play with Hikvision NVR. And support use with third party NVR.




  • Professional: we have more 10years experience in CCTV security market
  • Quality assurance:warranty 3years
  • Professional aftersale serice: professional engineers offer 7*18hours aftersale service
  • Warehouse: US,AU,ES,RU,CN warehouse
  • All orders need to be paid in advance
  • If you have a bulk order, welcome to contact with us for best price
  • Most orders will be shipped within 24 hours（working days)
  • Delivery will be delayed on weekends, thank you for your patience
  • If there is any shipment problem, please contact with us at any time
  • If you have any questions please feel free to contact us via eBay message. We will respond within 24hours.
  • We are professional and honest seller, must can solve your problem
  • Please don't open "CASE or Return" yourself before contact with us.  (the most problem is "customer don't know how to set and use", no worries, we can help you set online)
  • Please leave us positive feedback if your item was received in good condition
  • Our system will auto leave a good feedback for all customer, who leave us positive feedback firstly
  • Please don't leave negative feedback before contact with us. Your satisfaction is our mission , please trust us we must can solve all your problem and give you best solution.
Package Includes NVR+2 cameras
HDD Options 0TB HDD
Brand Hikvision OEM
Type Complete System
Connectivity Wired
Smart Home Compatibility Hikvision
Surveillance Technology IP/Network
Features Smart Hybrid Light, Human and Vehicle Detection, Efficient H.265+, Built-in microphone, IP67, Water and dust resistant, Night Light, Night Vision, Outdoor/Weatherproof, Wall Mounted, Waterproof, Motion detection, Multiple Language Support, Motion/PIR Activated, MIC, Dual Light, Two Way Speaker
MPN VK383F-LIUF
Smart Home Protocol Infrared
Location Outdoor & Indoor
Maximum Resolution 3840 × 2160（8MP）
Number Of Cameras Included 8
Power Source 12 VDC+PoE: IEEE 802.3af
Voltage 12 V
Aspect Ratio 110 mm × 93 mm (4.33" × 3.66")
Item Weight Approx. 385 g (0.85 lb.)
Lens Type Fixed focal lens, 2.8MM
Image Sensor 1/2.7" Progressive Scan CMOS
Angle Adjustment Pan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360°
Model VK383F-LIUF
Response Time 1/3 s to 1/100,000 s
Supplement Light Type IR,White Light(Up to 30 m)
Built-In Microphone YES
Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
Storage Capacity up to 512gb, not included
Manufacturer Warranty 3 Years
Compatible Brand Hikvision
Number Of Zones 8
Unit Quantity 8
Unit Type Unit
Items Included Camera, NVR
Number Of Channels 8
Colour White
Colour Mode Colour Day, B&W Night
